DTF Supplies
Professional-grade cleaning solutions, maintenance tools, and heat press accessories for DTF printers
From £2.50 ex. VAT
About DTF Supplies
Why DTF Printer Maintenance Is Not Optional
Every DTF printer relies on a piezoelectric printhead - a precision component containing thousands of microscopic nozzles, each firing ink droplets as small as 3.5 picolitres through apertures narrower than a human hair. These nozzles operate by applying electrical voltage to piezoelectric ceramic elements, which deform to eject ink at precise trajectories. When dried ink residue, fibre contamination, or crystallised pigment particles obstruct even a fraction of these channels, print quality degrades immediately: banding appears, colours shift, and white underbase coverage becomes patchy. A replacement printhead costs £200–£500 depending on model. The supplies on this page cost a fraction of that and prevent the damage in the first place.
DTF inks - particularly white ink - present unique maintenance challenges. White DTF ink contains rutile titanium dioxide (TiO2) pigment particles at 15–30% loading by weight. TiO2 has a density of approximately 4.23 g/cm³, over three times heavier than the water-based carrier fluid. This density differential means white ink sediments continuously, and dried TiO2 residue forms a hard, calcium-like deposit inside nozzle channels and on capping station surfaces that standard water cannot dissolve. Every product in this range is designed to address a specific failure mode in the DTF printing workflow.
Printhead Cleaning Solution - Targeted Ink Dissolution
Our cleaning solution is a water-based formulation containing non-ionic surfactants and glycol ether co-solvents, engineered to dissolve the specific binder and pigment chemistry used in DTF inks. Unlike generic inkjet cleaning fluids (which target dye-based inks with different molecular structures), this solution breaks down the acrylic co-polymer binders and disperses the heavy TiO2 pigment particles that cause DTF-specific blockages.
The surfactant molecules work by reducing the surface tension at the interface between dried ink residue and the cleaning fluid. This allows the solution to penetrate into micro-crevices within the nozzle plate and ink channels where dried pigment accumulates. The glycol ether component acts as a coupling solvent - it is miscible with both water and the organic binder resins in cured ink, effectively bridging the gap between the aqueous cleaning fluid and the hydrophobic ink residue.
Use cleaning solution for routine line flushing, manual printhead soaking (for stubborn partial clogs), capping station wipe-downs, and encoder strip cleaning. It is compatible with all Epson-based DTF printheads including DX5, DX7, XP600, i3200, and i1600 variants.
Wet Capping Moisturizer Solution - Nozzle Desiccation Prevention
The wet capping moisturizer is a fundamentally different formulation from cleaning solution, designed for a different purpose: preventing ink from drying inside the printhead during periods of inactivity. Where cleaning solution dissolves existing dried ink, the moisturizer prevents drying from occurring in the first place.
The moisturizer contains humectant compounds - hygroscopic substances that attract and retain water molecules from the surrounding atmosphere. When applied to the capping station pad or used to flush the printhead before storage, these humectants maintain a moist microenvironment around the nozzle plate. This prevents the water component of the ink from evaporating through the nozzle openings, which is the root cause of nozzle clogging during downtime.
The evaporation rate of the moisturizer is engineered to be significantly lower than standard cleaning solution. Where cleaning solution may dry within hours at room temperature and low humidity, the moisturizer maintains effective moisture levels for days to weeks depending on ambient conditions. This makes it essential for weekend shutdowns, holiday periods, and long-term printer storage. Printers stored without capping station moisture protection routinely suffer permanent nozzle damage within 48–72 hours in dry environments.

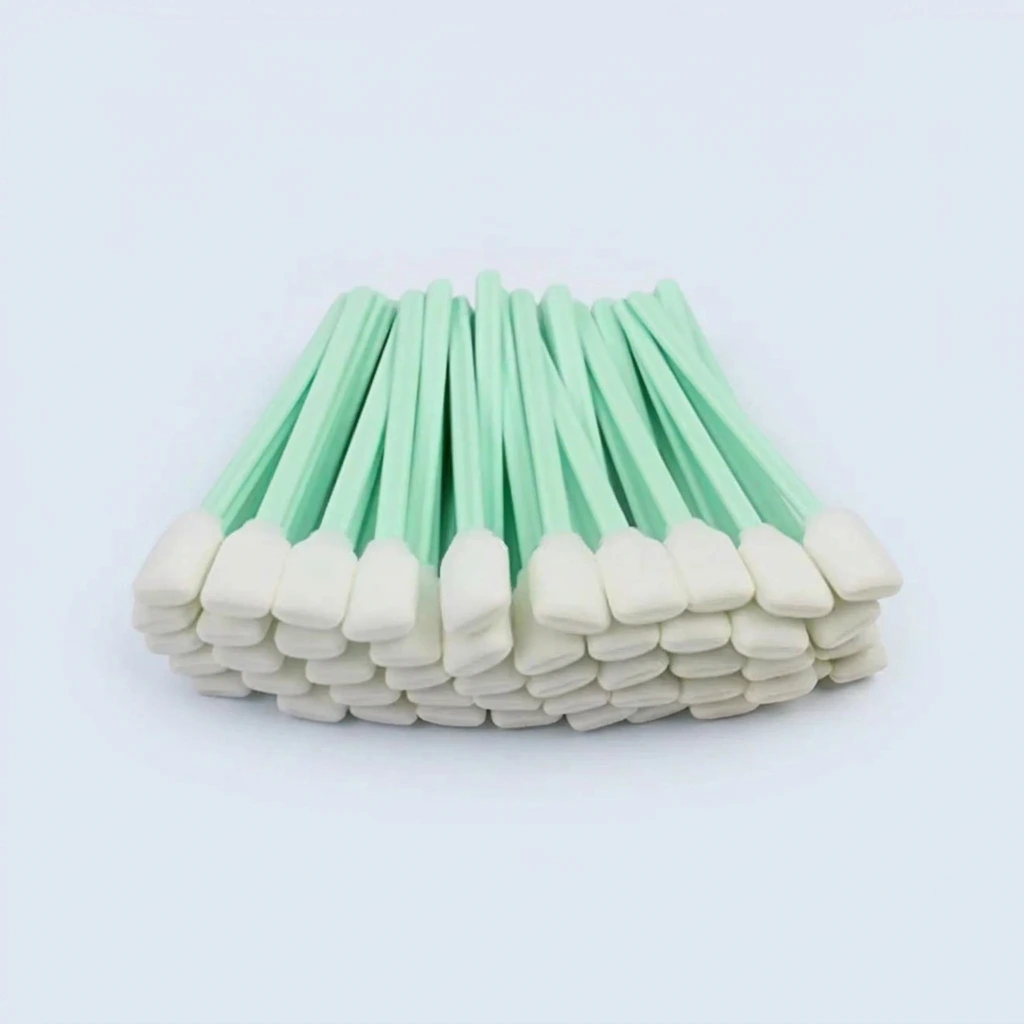

Foam Cleaning Swabs - Precision Lint-Free Application
Printhead cleaning is only as good as the tool applying the cleaning solution. Cotton buds and cotton swabs are the most common cause of secondary contamination during printer maintenance. Cotton fibres - typically 12–20 micrometres in diameter - shed from the swab tip during use and become lodged in the nozzle plate surface or dragged across the delicate nozzle openings. A single cotton fibre bridging a nozzle aperture of 20–50µm will block that channel completely.
Our foam swabs use a closed-cell polyurethane foam tip that does not shed fibres or particles during use. The foam structure provides consistent solution absorption and controlled release - you get an even application of cleaning fluid across the surface rather than the uncontrolled dripping that occurs with cotton. The flat, uniform tip geometry also provides full-contact wiping across the printhead nozzle plate, which is critical for removing the thin film of dried ink that builds up between cleaning cycles.
Each swab is single-use. Never reuse a swab that has contacted ink residue - dragging contaminated material back across the nozzle plate defeats the purpose of cleaning and can push particles deeper into the nozzle channels.

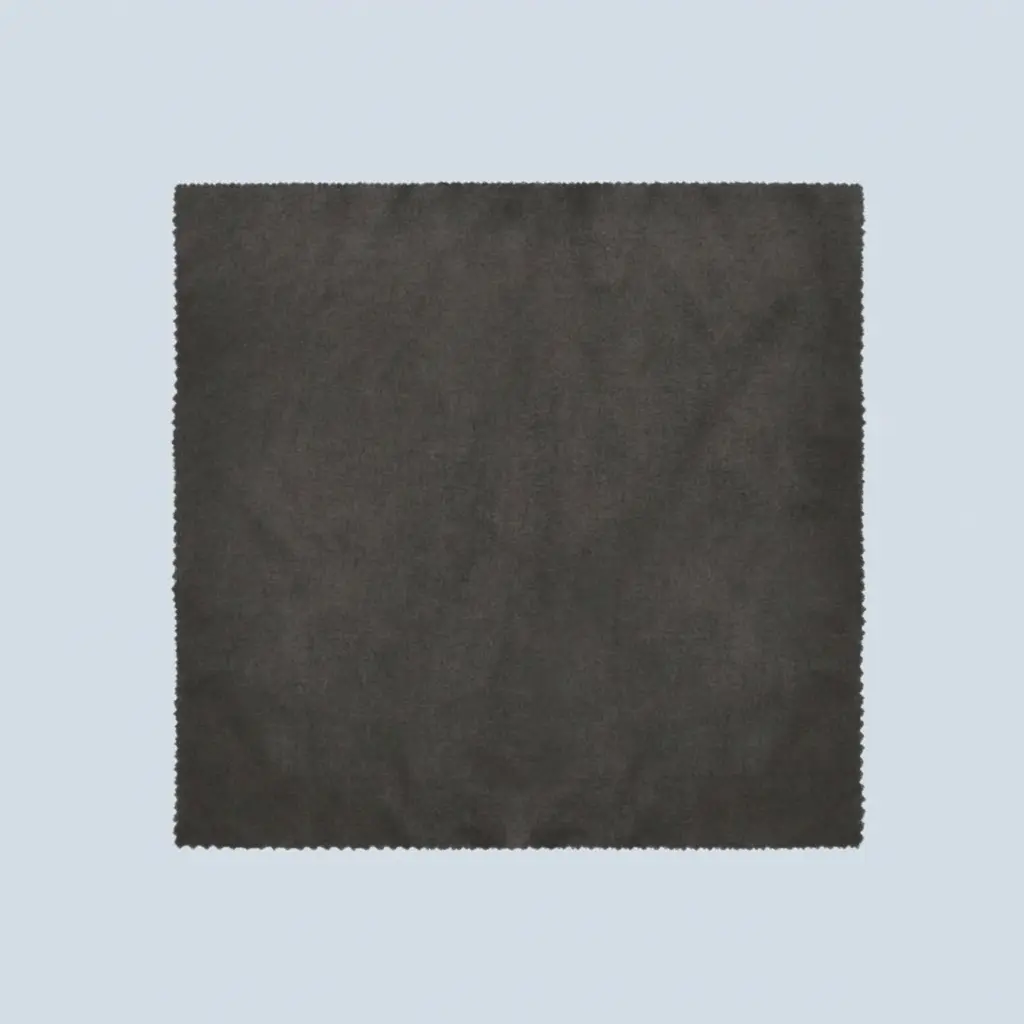

Microfibre Cleaning Cloths - Sub-Denier Surface Cleaning
Standard cleaning cloths and paper towels leave behind lint, paper fibres, and surface residue that contaminate precision printer components. Our microfibre cloths are constructed from split-fibre polyester/polyamide yarn with individual filaments measuring approximately 0.1–0.2 denier - roughly 1/100th the diameter of a human hair and 1/10th the diameter of a standard cotton fibre.
This ultra-fine fibre structure creates millions of microscopic hooks and loops per square centimetre that mechanically capture and hold particles rather than pushing them around the surface. When used on encoder strips, guide rails, and printer exteriors, microfibre cloths remove ink mist, dust, and debris without scratching precision-ground surfaces or leaving residue behind. The electrostatic charge generated by the synthetic fibres during wiping also attracts and holds fine particles that would otherwise become airborne and settle on the printhead.
Use dry for dusting and ink mist removal, or lightly dampened with cleaning solution for encoder strip and guide rail cleaning. These cloths can be washed and reused multiple times - launder without fabric softener, which coats the fibres and reduces their cleaning effectiveness.

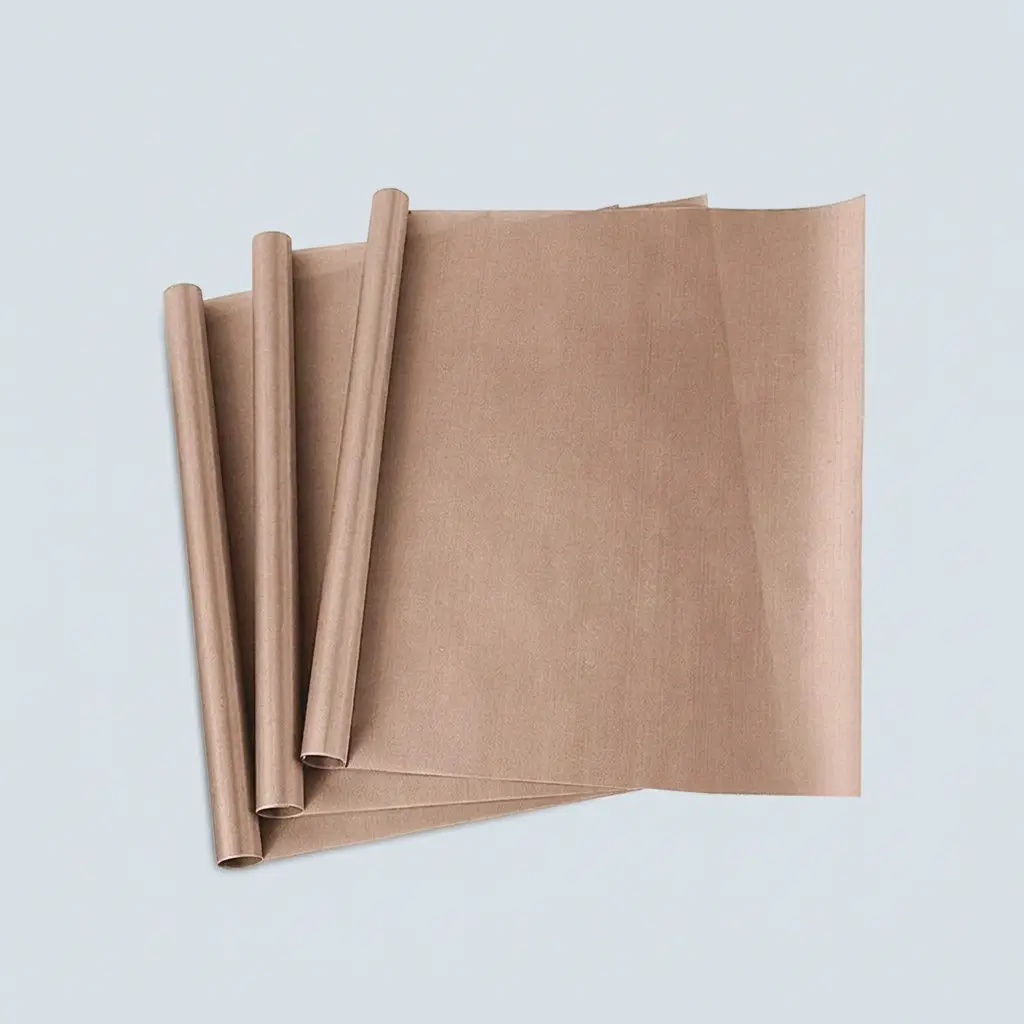

PTFE Heat Press Sheets - Non-Stick Transfer Protection
PTFE (polytetrafluoroethylene) is the same fluoropolymer known commercially as Teflon. It has the lowest coefficient of friction of any solid material and is virtually non-reactive to the adhesive powders and ink chemistry used in DTF film transfers. Our press sheets consist of a woven fibreglass substrate coated with PTFE, creating a heat-resistant, non-stick barrier between the transfer and your heat press platen.
Without a press sheet, DTF adhesive powder residue transfers to the platen surface and accumulates over successive presses. This adhesive buildup then transfers to the underside of subsequent garments, causing contamination marks, unwanted adhesion, and inconsistent pressing results. A PTFE sheet eliminates this problem entirely - the adhesive cannot bond to the fluoropolymer surface and any residue wipes off cleanly.
The fibreglass substrate provides dimensional stability at pressing temperatures up to 260°C and ensures even heat distribution across the sheet surface. Unlike silicone sheets (which degrade and become tacky at high temperatures over time), PTFE maintains its non-stick properties throughout its service life with no performance degradation until physical wear-through of the coating occurs.
A Complete Maintenance System
These five products are designed to work together as an integrated maintenance system covering every stage of DTF printer operation. Cleaning solution and foam swabs handle active maintenance - dissolving and removing ink residue from printheads and capping stations. The wet capping moisturizer protects the printhead during downtime and storage. Microfibre cloths maintain the precision mechanical components (encoder strips, guide rails) that affect print registration and carriage movement. PTFE sheets protect the pressing stage of the workflow. Together they address every common failure point in the DTF production chain, from first print to final press.
DTF Printer Maintenance - Complete Supply Guide
Whether you run a single desktop DTF printer or a multi-head production line, the maintenance requirements are fundamentally the same - only the volume of supplies changes. Here is what you need, when to use it, and how the products work together.
Essential Starter Kit
If you are setting up your first DTF printer, stock these supplies before you print your first transfer:
- Printhead cleaning solution - for daily wipe-downs, weekly flushing, and printhead recovery when nozzles drop out.
- Wet capping moisturizer - apply to your capping station pad at the end of every print session and before any period of inactivity longer than overnight.
- Foam cleaning swabs - you will use 1–2 per cleaning session. Budget for roughly 10 swabs per week at typical production volumes.
- Microfibre cloth - one cloth handles encoder strip and guide rail cleaning for several weeks if washed regularly.
- PTFE heat press sheet - one sheet lasts 100+ presses under normal use. Replace when the PTFE coating shows visible wear-through or the sheet begins to stick.
Daily Maintenance (2–3 Minutes)
- Print a nozzle check pattern at the start of each session. If channels are missing, run one head clean cycle.
- Dampen a foam swab with cleaning solution and gently wipe the capping station pad and rubber seal. Remove any dried ink buildup. Discard the swab.
- Check the wiper blade for ink accumulation - wipe clean with a second swab if needed.
- At the end of the session, apply 3–5 drops of wet capping moisturizer to the capping station pad before parking the printhead.
Weekly Maintenance (15–20 Minutes)
- Clean the encoder strip with a microfibre cloth lightly dampened with cleaning solution. Wipe along the full length in one direction - do not scrub back and forth. Ink mist on the encoder strip causes carriage positioning errors and banding.
- Wipe the guide rails clean and apply a thin film of light machine oil if recommended by your printer manufacturer.
- Flush cleaning solution through the ink lines using your printer's maintenance function. This clears any pigment settling in the tubing, particularly in the white ink channel.
- Inspect the printhead nozzle plate for dried ink accumulation around the edges. Clean with a dampened foam swab, wiping in one direction only.
- Check your PTFE heat press sheet - wipe off any adhesive residue with a dry microfibre cloth.
Monthly Deep Maintenance (30–45 Minutes)
- Perform a full ink line flush with cleaning solution across all channels, including white.
- Inspect dampers for air bubbles, discolouration, or reduced flow. Air ingress in dampers is one of the most common causes of print quality degradation.
- Check ink tube routing for kinks, pinch points, or areas where tubes may be rubbing against moving parts.
- Clean the printer interior - use a microfibre cloth to remove ink mist from internal surfaces, the platen, and the media feed path.
- Run a full nozzle check across all channels and compare against your baseline. Any consistent nozzle dropout pattern indicates early-stage clogging that should be addressed immediately.
Long-Term Storage Protocol (Holidays, Extended Downtime)
If your printer will be idle for more than 3–4 days, take these steps to prevent printhead damage:
- Run a full head clean cycle to flush fresh ink through all channels.
- Flush cleaning solution through the lines to clear pigment from the tubing and dampers.
- Saturate the capping station pad with wet capping moisturizer - use enough to keep the pad visibly damp.
- Park the printhead over the capping station and ensure a good seal.
- Cover the printer to reduce airflow across the capping station, which accelerates evaporation.
- In dry environments (below 40% relative humidity), consider placing a small open container of water inside the printer cover to raise local humidity.
When restarting after storage, run 2–3 head clean cycles followed by a nozzle check. It is normal to need a few cleaning cycles to re-prime all channels. If nozzles are still missing after 3 cycles, allow the printhead to soak on a moisturizer-dampened pad for 30 minutes before trying again.
The Cost of Neglect vs. The Cost of Prevention
A permanently clogged printhead costs £200–£500+ to replace. That does not include downtime, shipping wait times, or the lost production while you are unable to print. A full set of maintenance supplies costs a fraction of one printhead and lasts weeks to months depending on your production volume. We have seen printers in our workshop with heads that were beyond recovery - not because of a manufacturing defect, but because the operator skipped maintenance for a few weeks and allowed white ink to solidify in the nozzle channels. That is an entirely preventable failure.
Scaling for Production Volume
Hobbyist or low-volume (under 50 transfers/week): one cleaning session per day, weekly flush. A single pack of swabs and one bottle of each solution will last 1–2 months.
Medium production (50–200 transfers/week): twice-daily capping station wipe-down, weekly deep clean. Budget for 2–3 packs of swabs per month.
High production (200+ transfers/week): consider additional cleaning solution stock. Daily flushing cycles and more frequent damper inspections become necessary. At this volume, preventive maintenance is your single largest cost-saving measure.
Environmental Factors
Ambient humidity significantly affects ink drying rates. In dry environments (below 40% RH - common in heated workshops during winter), ink dries faster on the capping station and nozzle plate, increasing the risk of clogging. Use more wet capping moisturizer during dry periods. In humid environments (above 70% RH), the moisturizer retains effectiveness longer, but ink mist settles more readily on internal surfaces - increase your microfibre cloth cleaning frequency. Ideal operating conditions are 20–25°C and 40–60% relative humidity.
Technical Data Sheet - DTF Maintenance Supplies
Material specifications, chemical properties, and performance data for all DTF printer maintenance products. Data represents typical values under standard conditions (23°C, 50% RH) unless otherwise stated.
Printhead Cleaning Solution
| Formulation Type | Water-based with non-ionic surfactants and glycol ether co-solvents |
|---|---|
| pH (20°C) | 7.5 – 9.0 (mildly alkaline) |
| Viscosity (20°C) | 1.5 – 3.0 mPa·s |
| Surface Tension | 25 – 32 mN/m (reduced to improve wetting) |
| Specific Gravity | 1.00 – 1.05 |
| Appearance | Clear, colourless to pale yellow liquid |
| Odour | Mild, low-VOC |
| Flash Point | > 93°C (non-flammable under normal use) |
| Compatible Printheads | Epson DX5, DX7, XP600, i3200, i1600 and derivatives |
| Compatible Ink Types | Water-based DTF pigment inks (CMYK + White) |
| Dissolution Target | Acrylic co-polymer binders, TiO2 pigment agglomerates |
| Storage Temperature | 5°C – 35°C (do not freeze) |
| Shelf Life (unopened) | 24 months from manufacture date |
| Material Compatibility | Safe for use with EPDM, silicone, POM, stainless steel, PET, nylon |
Wet Capping Moisturizer Solution
| Formulation Type | Humectant-based aqueous solution (propylene glycol / glycerol) |
|---|---|
| Primary Function | Nozzle desiccation prevention during printer downtime and storage |
| pH (20°C) | 7.0 – 8.5 (neutral to mildly alkaline) |
| Viscosity (20°C) | 3.0 – 8.0 mPa·s (higher than cleaning solution for slower evaporation) |
| Hygroscopic Capacity | Absorbs and retains atmospheric moisture at RH > 30% |
| Evaporation Rate | Significantly lower than water and cleaning solution; maintains effective moisture 5–14 days at 50% RH |
| Appearance | Clear, colourless to slightly viscous liquid |
| Compatible Printheads | All Epson-based DTF printheads (DX5, DX7, XP600, i3200, i1600) |
| Application Method | Apply to capping station pad, flush through printhead before storage |
| Storage Temperature | 5°C – 35°C (do not freeze) |
| Shelf Life (unopened) | 24 months from manufacture date |
| Material Compatibility | Safe for EPDM seals, silicone tubing, POM fittings, printhead coatings |
Foam Cleaning Swabs
| Tip Material | Open-cell polyurethane foam (ester-based) |
|---|---|
| Handle Material | Polypropylene (PP) |
| Fibre / Particle Generation | Low-lint; suitable for precision electronics and printhead cleaning |
| Tip Geometry | Rectangular flat-tip for full-contact nozzle plate wiping |
| Absorbency | Controlled release - absorbs cleaning solution evenly, releases under light pressure |
| Chemical Resistance | Compatible with water, alcohols, glycol ethers, mild alkaline solutions |
| Abrasiveness | Non-abrasive - safe for nozzle plate coatings and encoder strip surfaces |
| ESD Properties | Non-conductive (will not discharge static to electronic components) |
| Operating Temperature | -20°C to +80°C |
| Single Use | Yes - discard after each cleaning session to prevent cross-contamination |
| Pack Size | 20 swabs per pack |
Microfibre Cleaning Cloths
| Fibre Composition | 80% polyester / 20% polyamide (split-fibre construction) |
|---|---|
| Fibre Diameter | 0.1 – 0.2 denier (~1/100th diameter of human hair) |
| Fabric Weight | 280 – 320 GSM |
| Weave Type | Warp-knitted terry loop |
| Lint Generation | Ultra-low lint - suitable for optical and precision surface cleaning |
| Particle Capture | Mechanical entrapment via sub-micron fibre hooks and electrostatic attraction |
| Absorbency | Up to 7× its own weight in liquid |
| Chemical Resistance | Compatible with water, alcohols, cleaning solutions, mild solvents |
| Washable | Yes - machine wash at 40°C without fabric softener; air dry or tumble dry low |
| Reuse Cycles | 100+ washes before significant performance degradation |
| Applications | Encoder strip, guide rails, printer exterior, platen surface, heat press maintenance |
| Pack Size | 20 cloths per pack |
PTFE Heat Press Sheets
| Coating Material | PTFE (polytetrafluoroethylene / Teflon) |
|---|---|
| Substrate | Woven fibreglass fabric |
| Sheet Dimensions | 60 × 40 cm |
| Total Thickness | 0.13 – 0.18 mm |
| Continuous Operating Temperature | -70°C to +260°C |
| Peak Temperature (short exposure) | Up to 327°C (PTFE melting point) |
| DTF Pressing Range | 140°C – 170°C (well within safe operating range) |
| Coefficient of Friction (Static) | 0.05 – 0.10 (one of the lowest of any solid material) |
| Non-Stick Surface Energy | ~18 mN/m (extremely low - adhesive cannot bond to surface) |
| Dielectric Strength | 60 – 100 kV/mm |
| Chemical Resistance | Inert to virtually all chemicals, solvents, and adhesives |
| UV Resistance | Excellent - no degradation from UV exposure |
| Expected Service Life | 100–300+ presses under normal DTF pressing conditions |
| Replacement Indicator | Visible wear-through of PTFE coating, surface stickiness, or adhesive residue retention |
Material Comparison - Why These Materials Matter
| Component | Material Choice | Why This Material |
|---|---|---|
| Swab tip | Polyurethane foam | Zero lint shedding vs. cotton (12–20µm fibres block 20–50µm nozzles) |
| Cloth fibre | Split polyester/polyamide | Sub-denier filaments capture particles mechanically without scratching |
| Press sheet coating | PTFE fluoropolymer | Lowest friction coefficient of any solid; chemically inert to DTF adhesives |
| Press sheet substrate | Woven fibreglass | Dimensionally stable at 260°C+; even heat distribution across sheet area |
| Cleaning solution base | DI water + glycol ethers | Dissolves both aqueous and organic ink components; safe for printhead coatings |
| Moisturizer base | Propylene glycol / glycerol | Hygroscopic - absorbs atmospheric water; very low evaporation rate |
Technical Specifications
| Cleaning solution type | Water-based, non-ionic surfactant + glycol ether co-solvents |
|---|---|
| Cleaning solution pH | 7.5 – 9.0 (mildly alkaline) |
| Moisturizer type | Humectant-based (propylene glycol / glycerol) |
| Moisturizer evaporation rate | Maintains effective moisture 5–14 days at 50% RH |
| Compatible printheads | All Epson-based DTF heads (DX5, DX7, XP600, i3200, i1600) |
| Swab material | Open-cell polyurethane foam, polypropylene handle |
| Swab lint rating | Low-lint, non-abrasive, non-conductive |
| Cloth fibre | 80/20 polyester/polyamide split-fibre, 0.1–0.2 denier |
| Cloth weight | 280–320 GSM, lint-free |
| Heat press sheet material | PTFE (Teflon) coated woven fibreglass |
| Heat press sheet temperature rating | Continuous use up to 260°C |
| Heat press sheet dimensions | 60 × 40 cm |
| Heat press sheet coefficient of friction | 0.05 – 0.10 (static) |
| Solution storage temperature | 5°C – 35°C (do not freeze) |
| Solution shelf life | 24 months from manufacture (unopened) |
Key Features
Frequently Asked Questions
What is the difference between cleaning solution and wet capping moisturizer?
Why foam swabs instead of cotton buds for printhead cleaning?
How often should I clean my DTF printer?
Can I use generic inkjet cleaning solution in my DTF printer?
How do I store my DTF printer long-term (holidays, extended shutdown)?
PTFE vs silicone heat press sheets - which is better for DTF?
How do I clean my printhead properly?
Why does white ink cause more maintenance problems than CMYK?
Can I mix cleaning solution from different brands?
How do I know when to replace each supply?
What maintenance supplies should I keep in stock?
